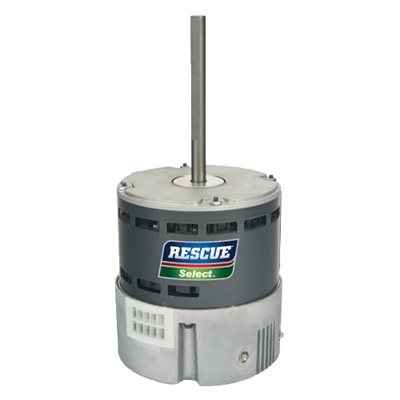

- **ECM 1HP 1050 / VAR. 230V 50 / 60Hz REV. 48 OAO
**ECM 1HP 1050 / VAR. 230V 50 / 60Hz REV. 48 OAO
Product Code: EM-6651RS
Class B Insulation, Belly Band Mount, 1/2" Diameter Shaft With Flat, Replaces X13®† And SeleTech®, 6,000V Surge Protection, Smooth/Quiet Start-Up And Speed Changes, Must Be Programmed Before Sale
- Type : ECM
- HP : 1
- Voltage : 208-230
- RPM : 1050
- Current (Amp) : 6.90-7.00 / 6.40-6.60
- Phase : 1
- Rotation : Reversible
- Frame : 48Y
- Enclosure : Open Air Over
- Speeds : Variable
- Protector : Electronically Protected
- Ambient Temp : 40°C
- CFM : N/A
- Service Factor : N/A
- Shaft Dimensions : 0.50 in X 5.50 in
- Frequency : 50/60Hz
- Diameter : 5.5 in
- Frame Length : 7.25 in
- Bearings : Ball
- Capacitor Rating : N/A
