Century

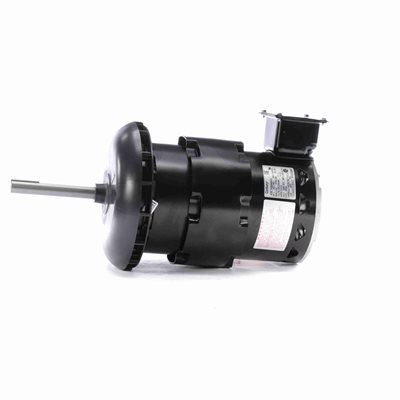

MOTOR 1 1140 230 / 460-3 48Z CANOPY

Product Code: FC3106F

Class F Insulation, Belly Band Mount, 5/8" Diameter Keyed Shaft With Flat, Conduit Box, Vertical Shaft Up

  • Contact us for pricing

  • Type : Three Phase
  • HP : 1
  • Voltage : 200-230 / 460
  • RPM : 1140
  • Current (Amp) : 5.60 / 2.80
  • Phase : 3
  • Rotation : Reversible
  • Frame : 48Y
  • Enclosure : Open Enclosed
  • Speeds : 1
  • Protector : Automatic
  • Ambient Temp : 70°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 0.625 in X 4.07 in
  • Frequency : 60Hz
  • Diameter : 5.5 in
  • Frame Length : 15.44 in
  • Bearings : Ball
  • Capacitor Rating : N/A
