Product Summary

KBAC 9481 Auto/Manual Switch Kit for use with SIAC is designed for installation on the front cover of the KBAC inverters. It is used to select either the Main Speed Potentiometer for “manual operation” or a remote voltage following analog signal for “automatic operation”, from the SIAC Signal Isolator option (Part No. 9600 (1)
KBRC 9487 Auto/Manual Switch Kit is designed for installation on the front cover of the KBRC- 240D. It is used to select either the Main Speed Potentiometer for “manual operation” or a remote voltage following analog signal for “automatic operation.” (1)
KBRC Power On/Off Switch assembly is designed to provide a positive AC line power disconnect. It can be installed in lieu of, or in addition to, the factory installed Start/Stop Switch assembly. The switch is double pole which is used to disconnect both AC lines. If only one AC line is to be disconnected, a single pole can be used. Refer to local electrical codes that apply. The Power On/Off Switch assembly contains two (2) blue and two (2) white wires which are terminated with 0.250” female quick-connect terminals. (1)
KBRF-350, CE Approved AC Line Filter (Class B) Mounts Under KBVF and "L" Bracket Controls (1)
KBVF 9598 DBVF Dynamic Brake Module for Single Phase Input Models (230VAC only) is designed to be used with the KBVF Series Drives (Model Nos. KBVF-21D, 22D, 13, 23, 23D, 14, 24, 24D) and the KBBL Series Drives (Model Nos. KBBL-2P2D, 2P3D, 2P6D, 21D, 22D, 23D, 24D). The DBM provides up to 25% continuous braking torque and 200% instantaneous braking torque (maximum 1 HP (0.75 kW). (1)
KBVF/KBAC-MSB 9503 Multi Speed Board provides (4) user selectable preset speeds to control a motor connected to the KBVF Adjustable Frequency Drive. A preset is selected with a contact closure or open collector. (1)
N/A (11)

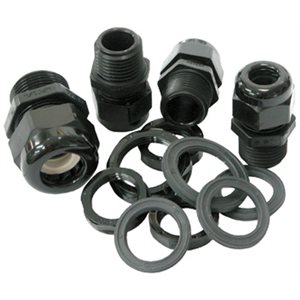

The fittings are designed to provide a liquidtight seal when using cables to wire the drive. These fittings are suitable for all KB NEMA 4X drives. Table 1 shows the specifications of the fittings. Figure 1 shows the order in which the fitting parts are assembled. Figure 2 shows the assembled fitting (1)
The KBMG Multi-Speed Board (Part No. 8833) provides (4) - user selectable preset speeds to control a motor connected to the KBMG-212D Regenerative Drive. A preset (PS 1, PS 2, PS 3, PS 4) is selected with a contact closure or open collector. The motor speed for each preset is adjustable via trimpot settings which can be fine tuned by using the HI-LO range jumpers. Motor direction is setby the position of Jumper R/F (forward/reverse) which is provided for each preset. Connections to the Multi-Speed Board are made via a barrier terminal block. A connector is available for a tach-generator,if required. (1)
The Run-Stop-Jog Switch provides selection between the Main Speed Potentiometer setting or a momentary jog speed, which can be used to index a machine into position. The switch contains three (3) positions: 1. “Run” – The switch is placed in this position when the control output is to be set using the Main Speed Potentiometer.2. “Jog” – Used to provide a low speed output. This position is spring loaded so the switch must be 3. “Stop” – Used as a resting position when the Jog function is used. The motor will stop when in this position. (1)
The SI-5 and SI-6 Barrier Terminal Board Signal Isolators convert standard KBIC® and KBMM™ controls to an isolated input. By using external resistors, the input signal can be changed to 0-100VDC, 0-200VDC and 4-20mA. The output voltage is 0-10VDC which can be rescaled via the built-in Min and Max trimpots. Selectable AC line jumpers allow the SI-5 and SI-6 to be used either with 115 or 230VAC controls. Installation is made by simply mating the unit to the speed control via the built-in quick-connect terminals. (1)
The SI-6 Barrier Terminal Board Signal Isolators convert standard KBIC® and KBMM™ controls to an isolated input. By using external resistors, the input signal can be changed to 0-100VDC, 0-200VDC and 4-20mA. The output voltage is 0-10VDC which can be rescaled via the built-in Min and Max trimpots. Selectable AC line jumpers allow the SI-5 and SI-6 to be used either with 115 or 230VAC controls. Installation is made by simply mating the unit to the speed control via the built-in quick-connect terminals. (1)
The SIAC-PS Signal Isolator with Power Supply provides an isolated interface between non-isolated signal sources and the drive. It is used with the KBAC 2G Series Drives to isolate, amplify, and condition DC voltage and current signals from any source (tach-generators, transducers, PLCs, and potentiometers). It provides an isolated input to control motor direction and an isolated 5 Volt DC power supply for potentiometer operation. In addition, this updated model contains an isolated 24 Volt DC power supply for transducers or auxiliary equipment. All input connections and power supplies are isolated from the AC line and motor wiring. It installs easily into the drive with a snap-in mounting base and is wired with a connector. Main features include voltage or current signal inputs. Other features include a power on LED, barrier terminal blocks to facilitate wiring, multi-turn trimpots (MAX1, OFFSET), and a jumper for voltage or current signal input selection. An optional accessory for use with the SIAC-PS is the Auto/Manual Switch (Part No. 9481) to select a signal input from either the SIAC-PS or the Main Speed Potentiometer of the drive (1)
Two Knob/Dial Kits are available. Both contain black knobs with silver inserts. Dial Plates are .040 aluminum with 3/8 mounting hole. 9815 Small Dial Dimensions: small dial plate 1.62" x 1.50" (1)
9510, Replacement Potentiometer Kit for NEMA-4X Controls (PC, PW, RC, AC) (1)
9884, The KBIC® and KBMM™ Barrier Terminal Boards easily convert a standard control with quick-connect terminals to barrier terminals. Provision is made for AC line and armature fusing. The Barrier Terminal Board installs directly over the control by mating the Q-D terminals. A separate .110” jumper wire can be used to connect to the I1 Inhibit terminal or, on the KBMM™, to the T or B terminals which are used for tach feedback. (Refer to KBMM™ Instruction Manual.) Fuses supplied separately. (1)
[+] Show More... [-] Show Less...

Homepage>
Catalog>
AC And DC Controls>
Drives Accessories

Drives Accessories

Result(s)

Display Type
Results per Page
Sort by

15 FOOT SHIELDED RS485 PATCH CABLE, CAT5e RJ45 CONNECTOR

15 FOOT SHIELDED RS485 PATCH CABLE, CAT5e RJ45 CONNECTOR
Nidec Drives
Code: UM-LCD-485-015

Contact us for pricing

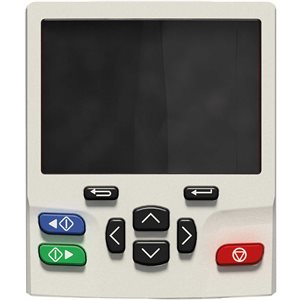

3IN FTFDISPLAY W / REAL TIME CLOCK, BLUETOOTH & RJ45 CONNECT.

3IN FTFDISPLAY W / REAL TIME CLOCK, BLUETOOTH & RJ45 CONNECT.
Nidec Drives
Code: KI-KEYPAD PLUS

Contact us for pricing

5 FOOT SHIELDED RS485 PATCH CABLE, CAT5e RJ45 CONNECTOR

5 FOOT SHIELDED RS485 PATCH CABLE, CAT5e RJ45 CONNECTOR
Nidec Drives
Code: UM-LCD-485-005

Contact us for pricing

Barrier Terminal Board, Models Where Used: KBMM KBIC

Barrier Terminal Board, Models Where Used: KBMM KBIC
KB
Code: KB9884

Contact us for pricing

Conductive Plastic Potentiometer 5K

Conductive Plastic Potentiometer 5K
KB
Code: KB9510

Contact us for pricing

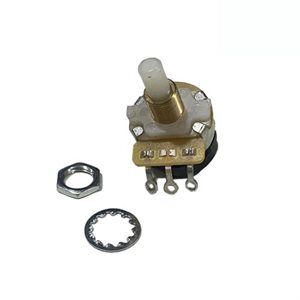

Conductive Plastic Potentiometer 5K (No Switch)

Conductive Plastic Potentiometer 5K (No Switch)
KB
Code: KB9111

Contact us for pricing

Conductive Plastic Potentiometer 5K (w / On-Off Switch)

Conductive Plastic Potentiometer 5K (w / On-Off Switch)
KB
Code: KB9114

Contact us for pricing

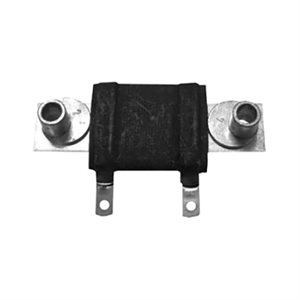

Dynamic Braking Resistor, 10 Ohm, 30 Watt

Dynamic Braking Resistor, 10 Ohm, 30 Watt
KB
Code: KB9864

Contact us for pricing

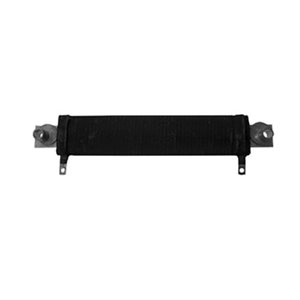

Dynamic Braking Resistor, 10 Ohm, 70 Watt

Dynamic Braking Resistor, 10 Ohm, 70 Watt
KB
Code: KB9865

Contact us for pricing

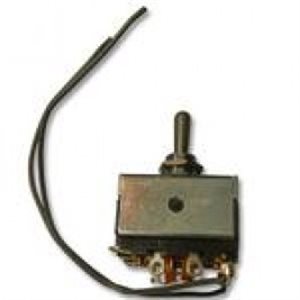

Forward / Brake / Reverse Switch (DB Resistor sold separately)

Forward / Brake / Reverse Switch (DB Resistor sold separately)
KB
Code: KB9844

Contact us for pricing

FUSE 1 / 12HP 90VDC ~ 1 / 6HP 180VDC 1.25A

FUSE 1 / 12HP 90VDC ~ 1 / 6HP 180VDC 1.25A
KB
Code: KB9739

Contact us for pricing

FUSE 1 / 15HP 90VDC ~ 1 / 8HP 180VDC 1A

FUSE 1 / 15HP 90VDC ~ 1 / 8HP 180VDC 1A
KB
Code: KB9738

Contact us for pricing

FUSE 1 / 20HP 90VDC - 1 / 10HP 180VDC 0.75A

FUSE 1 / 20HP 90VDC - 1 / 10HP 180VDC 0.75A
KB
Code: KB9737

Contact us for pricing

FUSE 1 / 30HP 90VDC ~ 1 / 15HP 180VDC 0.50A

FUSE 1 / 30HP 90VDC ~ 1 / 15HP 180VDC 0.50A
KB
Code: KB9736

Contact us for pricing

FUSE 1 / 3HP 90VDC - 3 / 4HP 180VDC 5A

FUSE 1 / 3HP 90VDC - 3 / 4HP 180VDC 5A
KB
Code: KB9743

Contact us for pricing

FUSE 1 / 6HP 90VDC ~ 1 / 3HP 180VDC 2.5A

FUSE 1 / 6HP 90VDC ~ 1 / 3HP 180VDC 2.5A
KB
Code: KB9741

Contact us for pricing

FUSE 12AMP, 3 / 4-90, 1.5-180

FUSE 12AMP, 3 / 4-90, 1.5-180
KB
Code: KB9745

Contact us for pricing

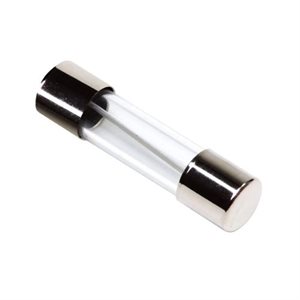

FUSE 15AMP, 1-90, 2-180

FUSE 15AMP, 1-90, 2-180
KB
Code: KB9746

Contact us for pricing

FUSE 2.0AMP, 1 / 8-90, 1 / 4-180

FUSE 2.0AMP, 1 / 8-90, 1 / 4-180
KB
Code: KB9740

Contact us for pricing

FUSE 25AMP, 1.5-90, 3-180

FUSE 25AMP, 1.5-90, 3-180
KB
Code: KB9747

Contact us for pricing

FUSE 8.0AMP, 2-90, 1-180

FUSE 8.0AMP, 2-90, 1-180
KB
Code: KB9744

Contact us for pricing

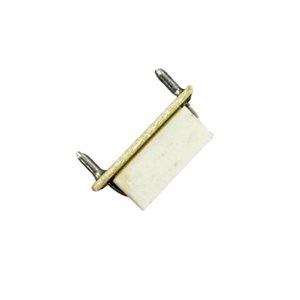

INDIV RESISTOR .51Ohm ARM 1 / 50-1 / 30HP 90VDC 1 / 25-1 / 15HP 180V

INDIV RESISTOR .51Ohm ARM 1 / 50-1 / 30HP 90VDC 1 / 25-1 / 15HP 180V
KB
Code: KB9834

Contact us for pricing

INDIVIDUAL FUSE 1 / 4HP 90VDC - 1 / 2HP 180VDC 4A

INDIVIDUAL FUSE 1 / 4HP 90VDC - 1 / 2HP 180VDC 4A
KB
Code: KB9742

Contact us for pricing

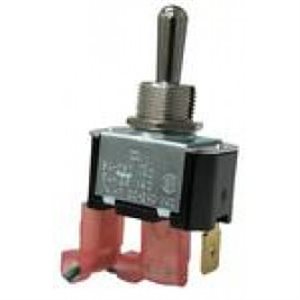

KBAC Auto / Manual Switch Kit

KBAC Auto / Manual Switch Kit
KB
Code: KB9481

Contact us for pricing
