Century

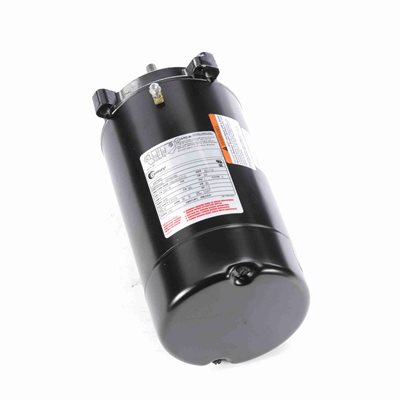

POOL MOT. 3 / 4 3600 115 / 230 56J

Product Code: UST1072

Class B Insulation, C Flange Mount, No Base,Threaded Shaft 7/16-20 UNF-2A

  • Contact us for pricing

  • Type : Capacitor Start
  • HP : 3/4
  • Voltage : 115 / 230
  • RPM : 3450
  • Current (Amp) : 11.00 / 5.50
  • Phase : 1
  • Rotation : Counterclockwise Shaft End
  • Frame : 56J
  • Enclosure : Open Drip Proof
  • Speeds : 1
  • Protector : Automatic
  • Ambient Temp : 50°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : Shaft Thread 7/16-20 UNF-2A
  • Frequency : 60Hz
  • Diameter : 5.5 in
  • Frame Length : 13.20 in
  • Bearings : Ball
  • Capacitor Rating : N/A
