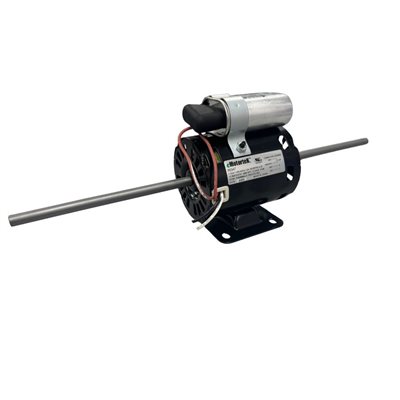

MOTOR D / S 0.048HP 115 1050 OPEN SOLID
Press and move to zoom.
Mouse over image to zoom.
Click to enlarge
OMNIDRIVE

MOTOR D / S 0.048HP 115 1050 OPEN SOLID

Product Code: 56347

Capacitor Attached,Double Shaft

  • Contact us for pricing

  • Type : Permanent Split Capacitor
  • HP : 1/12
  • Voltage : 115
  • RPM : 1050
  • Current (Amp) : 1.60
  • Phase : 1
  • Rotation : Counterclockwise Lead End
  • Frame : 3.3
  • Enclosure : Open
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 6.125 in X 3/8 in X 6.125 in
  • Frequency : 60Hz
  • Diameter : 3.3 in
  • Frame Length : 4.13 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A
