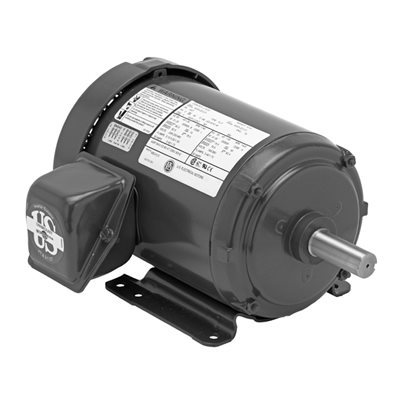

MOTOR 7.5 3600 230 / 460-3 213T TEFC
Product Code: S7P1A
Class F Insulation, Rigid Base Mount, Rolled Steel Frame, Shaft Slinger For IP54 Protection
- Type : Three Phase
- HP : 7.5
- Voltage : 208-230 / 460
- RPM : 3450
- Current (Amp) : 19.90-17.90 / 9..00
- Phase : 3
- Rotation : Reversible
- Frame : 213T
- Enclosure : Totally Enclosed Fan Cooled
- Speeds : 1
- Protector : No Protection
- Ambient Temp : 40°C
- CFM : N/A
- Service Factor : 1.15
- Shaft Dimensions : 1.375 in X 3.38 in
- Frequency : 60Hz
- Diameter : 9.0 in
- Frame Length : 18.90 in
- Bearings : Ball
- Capacitor Rating : N/A
