Elco

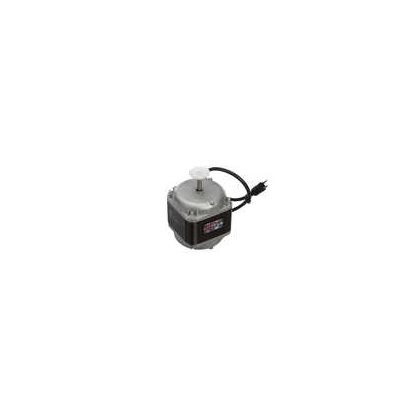

MOTOR 34WATT 230VCW

Product Code: EC34W230

Class B Insulation, Shaft with 4 End-Stud, 21-23 in Leads with Ring Terminals, One Foot, Front Shroud, 3 Tapped Rear Holes.UL & CSA Certified

  • Contact us for pricing

  • Type : Shaded Pole
  • HP : 34 Watt
  • Voltage : 230
  • RPM : 1550
  • Current (Amp) : 0.80
  • Phase : 1
  • Rotation : Counterclockwise Shaft End
  • Frame : Unit Bearing
  • Enclosure : Totally Enclosed Air Over
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : Hubless X 0.61 in
  • Frequency : 60Hz
  • Diameter : N/A
  • Frame Length : 3.58 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A
