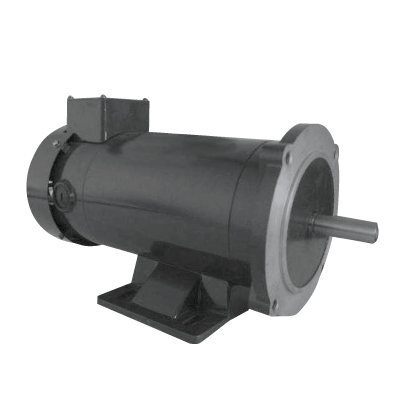

MOTOR 3 1725 180VARM 145TC TEFC
Product Code: DC517
Permanent Magnet, Continuous Duty, Class ‘F’ Insulation, UL Listed & CSA Approved, Removable Rigid Base, 20:1 C.T. Speed Range, Brush Number: BR56
- Type : D.C.
- HP : 3
- Voltage : 180
- RPM : 1725
- Current (Amp) : 14.00
- Phase : N/A
- Rotation : Reversible
- Frame : 145TC
- Enclosure : Totally Enclosed Fan Cooled
- Speeds : 1
- Protector : None
- Ambient Temp : 40°C
- CFM : N/A
- Service Factor : 1.00
- Shaft Dimensions : 0.875 in X 1.88 in
- Frequency : N/A
- Diameter : 6.5 in
- Frame Length : 19.25 in
- Bearings : Ball
- Capacitor Rating : N/A
