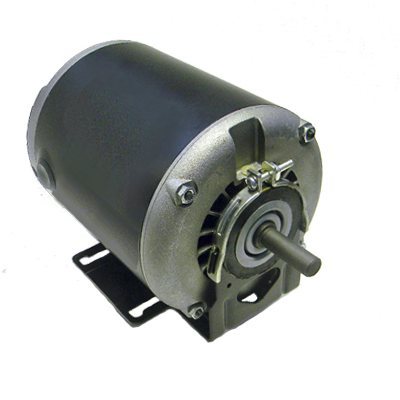

MOTOR 1 / 4 1725 115 / 230 48 BB AUT
Press and move to zoom.
Mouse over image to zoom.
Click to enlarge
OMNIDRIVE

MOTOR 1 / 4 1725 115 / 230 48 BB AUT

Product Code: SS933D

Class 'B' Insulation, 1/2" to 5/8” Sleeve & Key included, Resilient Base

  • Contact us for pricing

  • Type : Split Phase
  • HP : 1/4
  • Voltage : 115 / 208-230
  • RPM : 1725
  • Current (Amp) : 4.60 / 2.20-2.10
  • Phase : 1
  • Rotation : Reversible
  • Frame : 48
  • Enclosure : Open Drip Proof
  • Speeds : 1
  • Protector : Automatic
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 0.50 in X 1.88 in
  • Frequency : 60Hz
  • Diameter : 5.5 in
  • Frame Length : 6.75 in
  • Bearings : Ball
  • Capacitor Rating : N/A
