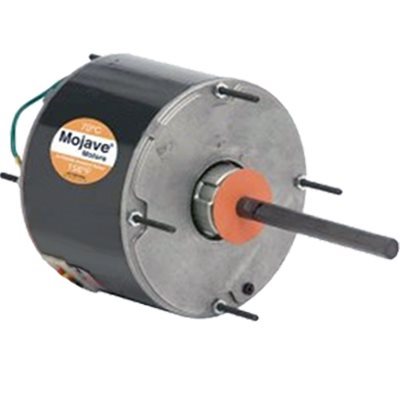

MOTOR 1 / 2 460-1 1075 TE BB 70°C 10
Product Code: EM3738F
Class F Insulation, Extended Bolts Opposite Shaft End, Mounting Holes In Shell, Belly Band Mount, 36" Leads, 1/2" Diameter Shaft With Double Flat, Capacitor Required: 10 Mfd-370 Volts (Not Supplied With Motor)
- Type : Permanent Split Capacitor
- HP : 1/2
- Voltage : 460
- RPM : 1075
- Current (Amp) : 1.50
- Phase : 1
- Rotation : Reversible
- Frame : 48Y
- Enclosure : Totally Enclosed
- Speeds : 1
- Protector : Automatic
- Ambient Temp : 70°C
- CFM : N/A
- Service Factor : 1.00
- Shaft Dimensions : 0.50 in X 6.00 in
- Frequency : 60Hz
- Diameter : 5.5 in
- Frame Length : 12.17 in
- Bearings : Ball
- Capacitor Rating : 10-370
