Product Summary

KBAC 9481 Auto/Manual Switch Kit for use with SIAC is designed for installation on the front cover of the KBAC inverters. It is used to select either the Main Speed Potentiometer for “manual operation” or a remote voltage following analog signal for “automatic operation”, from the SIAC Signal Isolator option (Part No. 9600 (1)
KBRC 9487 Auto/Manual Switch Kit is designed for installation on the front cover of the KBRC- 240D. It is used to select either the Main Speed Potentiometer for “manual operation” or a remote voltage following analog signal for “automatic operation.” (1)
KBRC Power On/Off Switch assembly is designed to provide a positive AC line power disconnect. It can be installed in lieu of, or in addition to, the factory installed Start/Stop Switch assembly. The switch is double pole which is used to disconnect both AC lines. If only one AC line is to be disconnected, a single pole can be used. Refer to local electrical codes that apply. The Power On/Off Switch assembly contains two (2) blue and two (2) white wires which are terminated with 0.250” female quick-connect terminals. (1)
KBRF-350, CE Approved AC Line Filter (Class B) Mounts Under KBVF and "L" Bracket Controls (1)
KBVF 9598 DBVF Dynamic Brake Module for Single Phase Input Models (230VAC only) is designed to be used with the KBVF Series Drives (Model Nos. KBVF-21D, 22D, 13, 23, 23D, 14, 24, 24D) and the KBBL Series Drives (Model Nos. KBBL-2P2D, 2P3D, 2P6D, 21D, 22D, 23D, 24D). The DBM provides up to 25% continuous braking torque and 200% instantaneous braking torque (maximum 1 HP (0.75 kW). (1)
KBVF/KBAC-MSB 9503 Multi Speed Board provides (4) user selectable preset speeds to control a motor connected to the KBVF Adjustable Frequency Drive. A preset is selected with a contact closure or open collector. (1)
N/A (11)
The fittings are designed to provide a liquidtight seal when using cables to wire the drive. These fittings are suitable for all KB NEMA 4X drives. Table 1 shows the specifications of the fittings. Figure 1 shows the order in which the fitting parts are assembled. Figure 2 shows the assembled fitting (1)
The KBMG Multi-Speed Board (Part No. 8833) provides (4) - user selectable preset speeds to control a motor connected to the KBMG-212D Regenerative Drive. A preset (PS 1, PS 2, PS 3, PS 4) is selected with a contact closure or open collector. The motor speed for each preset is adjustable via trimpot settings which can be fine tuned by using the HI-LO range jumpers. Motor direction is setby the position of Jumper R/F (forward/reverse) which is provided for each preset. Connections to the Multi-Speed Board are made via a barrier terminal block. A connector is available for a tach-generator,if required. (1)
The Run-Stop-Jog Switch provides selection between the Main Speed Potentiometer setting or a momentary jog speed, which can be used to index a machine into position. The switch contains three (3) positions: 1. “Run” – The switch is placed in this position when the control output is to be set using the Main Speed Potentiometer.2. “Jog” – Used to provide a low speed output. This position is spring loaded so the switch must be 3. “Stop” – Used as a resting position when the Jog function is used. The motor will stop when in this position. (1)
The SI-5 and SI-6 Barrier Terminal Board Signal Isolators convert standard KBIC® and KBMM™ controls to an isolated input. By using external resistors, the input signal can be changed to 0-100VDC, 0-200VDC and 4-20mA. The output voltage is 0-10VDC which can be rescaled via the built-in Min and Max trimpots. Selectable AC line jumpers allow the SI-5 and SI-6 to be used either with 115 or 230VAC controls. Installation is made by simply mating the unit to the speed control via the built-in quick-connect terminals. (1)
The SI-6 Barrier Terminal Board Signal Isolators convert standard KBIC® and KBMM™ controls to an isolated input. By using external resistors, the input signal can be changed to 0-100VDC, 0-200VDC and 4-20mA. The output voltage is 0-10VDC which can be rescaled via the built-in Min and Max trimpots. Selectable AC line jumpers allow the SI-5 and SI-6 to be used either with 115 or 230VAC controls. Installation is made by simply mating the unit to the speed control via the built-in quick-connect terminals. (1)
The SIAC-PS Signal Isolator with Power Supply provides an isolated interface between non-isolated signal sources and the drive. It is used with the KBAC 2G Series Drives to isolate, amplify, and condition DC voltage and current signals from any source (tach-generators, transducers, PLCs, and potentiometers). It provides an isolated input to control motor direction and an isolated 5 Volt DC power supply for potentiometer operation. In addition, this updated model contains an isolated 24 Volt DC power supply for transducers or auxiliary equipment. All input connections and power supplies are isolated from the AC line and motor wiring. It installs easily into the drive with a snap-in mounting base and is wired with a connector. Main features include voltage or current signal inputs. Other features include a power on LED, barrier terminal blocks to facilitate wiring, multi-turn trimpots (MAX1, OFFSET), and a jumper for voltage or current signal input selection. An optional accessory for use with the SIAC-PS is the Auto/Manual Switch (Part No. 9481) to select a signal input from either the SIAC-PS or the Main Speed Potentiometer of the drive (1)
Two Knob/Dial Kits are available. Both contain black knobs with silver inserts. Dial Plates are .040 aluminum with 3/8 mounting hole. 9815 Small Dial Dimensions: small dial plate 1.62" x 1.50" (1)
9510, Replacement Potentiometer Kit for NEMA-4X Controls (PC, PW, RC, AC) (1)
9884, The KBIC® and KBMM™ Barrier Terminal Boards easily convert a standard control with quick-connect terminals to barrier terminals. Provision is made for AC line and armature fusing. The Barrier Terminal Board installs directly over the control by mating the Q-D terminals. A separate .110” jumper wire can be used to connect to the I1 Inhibit terminal or, on the KBMM™, to the T or B terminals which are used for tach feedback. (Refer to KBMM™ Instruction Manual.) Fuses supplied separately. (1)
[+] Show More... [-] Show Less...

Homepage>
Brands>
KB>
AC And DC Controls>
Drives Accessories

Drives Accessories

Result(s)

Display Type
Results per Page
Sort by

KBMG Multi-Speed Board, plugs on top of KBMG

KBMG Multi-Speed Board, plugs on top of KBMG
KB
Code: KB8833

Contact us for pricing

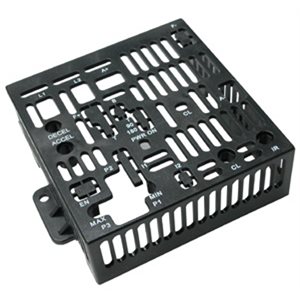

KBMM FINGER SAFE COVER

KBMM FINGER SAFE COVER
KB
Code: KB9564

Contact us for pricing

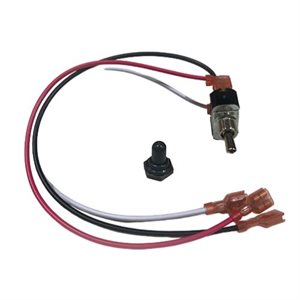

KBPC, KBPW, KBRC, KBAC Start / Stop switch

KBPC, KBPW, KBRC, KBAC Start / Stop switch
KB
Code: KB9393

Contact us for pricing

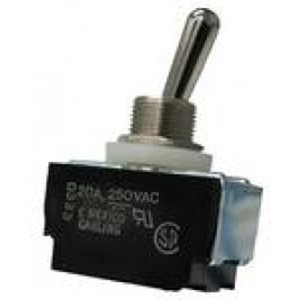

KBRC Auto / Manual Switch Kit

KBRC Auto / Manual Switch Kit
KB
Code: KB9487

Contact us for pricing

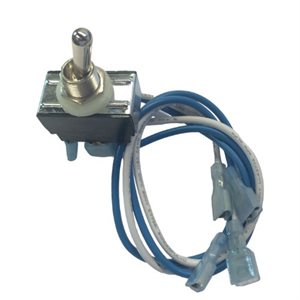

KBRC On / Off AC Line Switch Kit

KBRC On / Off AC Line Switch Kit
KB
Code: KB9486

Contact us for pricing

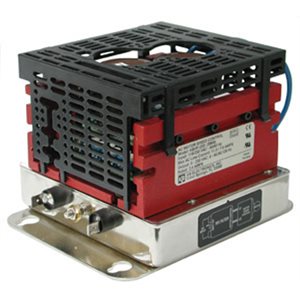

KBRF-350 AC LINE FILTER

KBRF-350 AC LINE FILTER
KB
Code: KB9511

Contact us for pricing

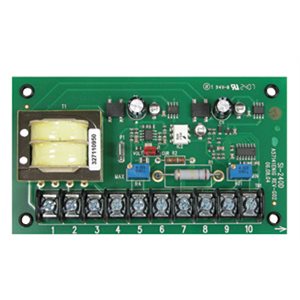

KBSI-240D Signal Isolator, Stand Alone

KBSI-240D Signal Isolator, Stand Alone
KB
Code: KB9431

Contact us for pricing

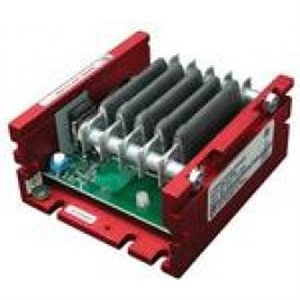

KBVF Dynamic Braking Module for single phase In models

KBVF Dynamic Braking Module for single phase In models
KB
Code: KB9598

Contact us for pricing

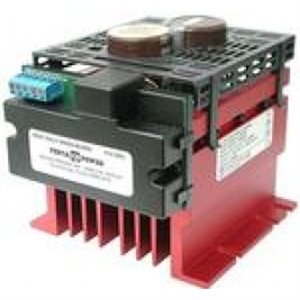

KBVF Multi-Speed Board (Installs on end of KBVF)

KBVF Multi-Speed Board (Installs on end of KBVF)
KB
Code: KB9503

Contact us for pricing

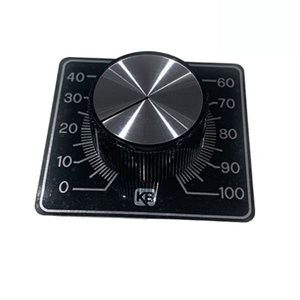

Knob and Dial Kit - Large Dial Plate (2.25" x 2.06")

Knob and Dial Kit - Large Dial Plate (2.25" x 2.06")
KB
Code: KB9832

Contact us for pricing

Knob and Dial Kit - Small Dial Plate (1.62" x 1.05")

Knob and Dial Kit - Small Dial Plate (1.62" x 1.05")
KB
Code: KB9815

Contact us for pricing

RESISTOR 1 Ohm ARM 1 / 100-1 / 50HP 90-130VDC ~ 1 / 50-1 / 25HP 180V

RESISTOR 1 Ohm ARM 1 / 100-1 / 50HP 90-130VDC ~ 1 / 50-1 / 25HP 180V
KB
Code: KB9833

Contact us for pricing

RESISTOR 1 / 12-1 / 4 115 / 230V

RESISTOR 1 / 12-1 / 4 115 / 230V
KB
Code: KB9837

Contact us for pricing

RESISTOR 1 / 20-1 / 6 115 / 230V

RESISTOR 1 / 20-1 / 6 115 / 230V
KB
Code: KB9836

Contact us for pricing

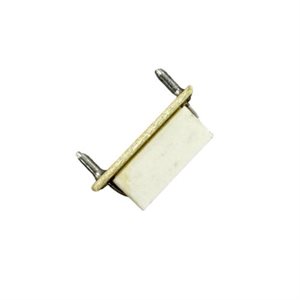

RESISTOR 1 / 20-1 / 6 115 / 230V

RESISTOR 1 / 20-1 / 6 115 / 230V
KB
Code: KB9841

Contact us for pricing

RESISTOR 1 / 3-3 / 4 115 / 230V

RESISTOR 1 / 3-3 / 4 115 / 230V
KB
Code: KB9840

Contact us for pricing

RESISTOR 1 / 30-1 / 10 115 / 230V

RESISTOR 1 / 30-1 / 10 115 / 230V
KB
Code: KB9835

Contact us for pricing

RESISTOR 1 / 4-1 / 2 115 / 230V

RESISTOR 1 / 4-1 / 2 115 / 230V
KB
Code: KB9839

Contact us for pricing

RESISTOR 1 / 8-1 / 3 115 / 230V

RESISTOR 1 / 8-1 / 3 115 / 230V
KB
Code: KB9838

Contact us for pricing

RESISTOR 3 / 4-1.5HP 115 / 230V

RESISTOR 3 / 4-1.5HP 115 / 230V
KB
Code: KB9842

Contact us for pricing

Run / Stop / Jog Switch Kit- PC, PW, KBAC, (Pkg. A B Only)

Run / Stop / Jog Switch Kit- PC, PW, KBAC, (Pkg. A & B Only)
KB
Code: KB9340

Contact us for pricing

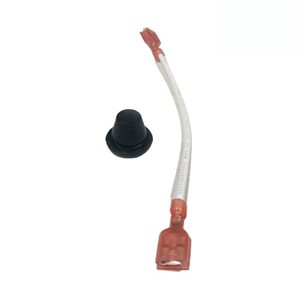

Seal Kit for NEMA-4X Controls (PC, PW, RC, AC)

Seal Kit for NEMA-4X Controls (PC, PW, RC, AC)
KB
Code: KB9518

Contact us for pricing

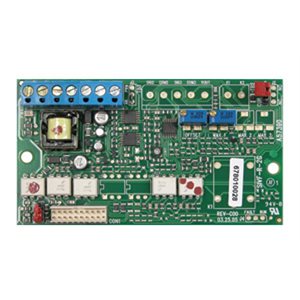

SIAC-PS (2G) Signal Isolator with Power Supply

SIAC-PS (2G) Signal Isolator with Power Supply
KB
Code: KB9600

Contact us for pricing

Signal Isolator Board (SI-6), Used with: KBMM KBIC

Signal Isolator Board (SI-6), Used with: KBMM KBIC
KB
Code: KB9444

Contact us for pricing
