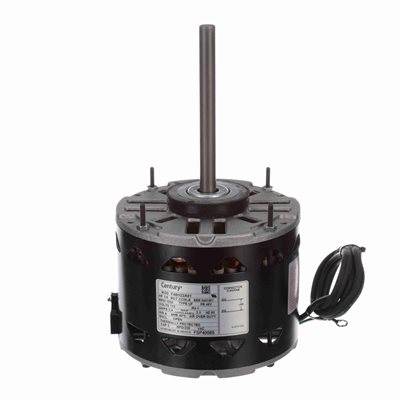

MOTOR 1 / 8 115 1050 OPEN
Product Code: FSP4006S
Class A Insulation, Extended Studs Shaft End, Belly Band Mount, Resilient Ring Mount, 1/2" Diameter Shaft With Flat, 29" Leads, Capacitor Required: 5MFD-250Volts (Supplied With Motor)
- Type : Permanent Split Capacitor
- HP : 1/8
- Voltage : 115
- RPM : 1050
- Current (Amp) : 2.40
- Phase : 1
- Rotation : Counterclockwise Lead End
- Frame : 48Y
- Enclosure : Open Enclosed
- Speeds : 1
- Protector : Automatic
- Ambient Temp : 40°C
- CFM : N/A
- Service Factor : 1.00
- Shaft Dimensions : 0.50 in X 5.40 in
- Frequency : 60Hz
- Diameter : 5.5 in
- Frame Length : 10.30 in
- Bearings : Sleeve
- Capacitor Rating : 5-250
