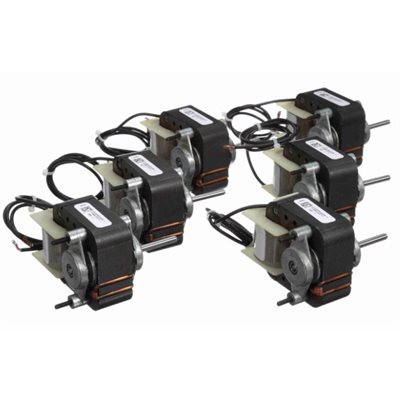

SKEL .MOT. 230 3000 7 / 8" STACK 3 / 16" SHAFT CW
Press and move to zoom.
Mouse over image to zoom.

SKEL .MOT. 230 3000 7 / 8" STACK 3 / 16" SHAFT CW

Product Code: K683

Class B Insulation, 12 in Leads with 0.5 in Strip, Extended Studs Opposite Shaft End, Thermally Protected, One-Shot Fuse
  • Contact us for pricing

  • Type : Shaded Pole
  • HP : 1/100
  • Voltage : 240
  • RPM : 3000
  • Current (Amp) : 0.30
  • Phase : 1
  • Rotation : Clockwise Shaft End
  • Frame : Skeleton
  • Enclosure : Open
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 3/16 in X 1.750 in
  • Frequency : 60Hz
  • Diameter : N/A
  • Frame Length : 1.875 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A
  • Availability: In stock
