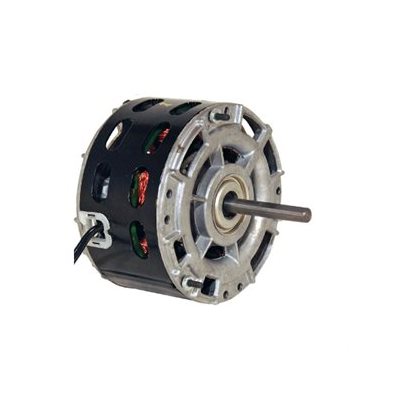

NLA MOTOR 1 / 8 115 1050 2SPD.
Press and move to zoom.
Mouse over image to zoom.
Click to enlarge
Century

NLA MOTOR 1 / 8 115 1050 2SPD.

Product Code: 346

Class A Insulation, 32 in Leads, Tapped Holes For Coleman Mount, Shaft With Flat

  • Contact us for pricing

  • Type : Shaded Pole
  • HP : 1/8
  • Voltage : 115
  • RPM : 1050
  • Current (Amp) : 4.8
  • Phase : 1
  • Rotation : Clockwise Shaft End
  • Frame : 42
  • Enclosure : Open Air Over
  • Speeds : 2
  • Protector : Automatic
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 0.500 in X 4.46 in
  • Frequency : 60Hz
  • Diameter : 5.0 in
  • Frame Length : 3.42 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A
  • Availability: Out of stock
