Century

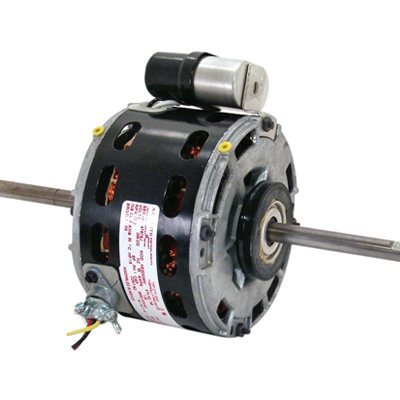

**MOTOR D / S 1 / 6 115 1075 3SPD.

Product Code: 670

Class A Insulation, 46 in Leads, Double Shaft With Flat, Resilient Ring Mounting, Capacitor Required 5Mfd-370V Supplied With Motor

  • Contact us for pricing

  • Type : Permanent Split Capacitor
  • HP : 1/6
  • Voltage : 115
  • RPM : 1075
  • Current (Amp) : 2,7
  • Phase : 1
  • Rotation : Clockwise Lead End
  • Frame : 42Y
  • Enclosure : Open Air Over
  • Speeds : 3
  • Protector : Automatic
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 8.3 in X 0.500 in X 8.3 in
  • Frequency : 60Hz
  • Diameter : 5.0 in
  • Frame Length : 3.67 in
  • Bearings : Sleeve
  • Capacitor Rating : 5-44
  • Availability: Out of stock
