Fasco

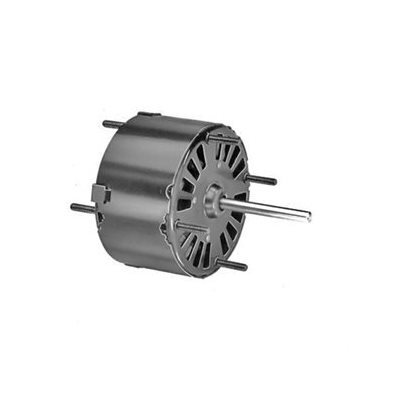

MOTEUR 1 / 40 1500 115 1.1 OUV CW

Product Code: D126

Class B Insulation, 12 in Leads, Extended Studs Both Sides, Belly Band Mount

  • Contact us for pricing

  • Type : Shaded Pole
  • HP : 1/40
  • Voltage : 115
  • RPM : 1500
  • Current (Amp) : 1.10
  • Phase : 1
  • Rotation : Clockwise Shaft End
  • Frame : 3.3
  • Enclosure : Open
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 5/16 in X 2.3 in
  • Frequency : 60Hz
  • Diameter : 3.3 in
  • Frame Length : 2.24 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A
  • Availability: In stock
